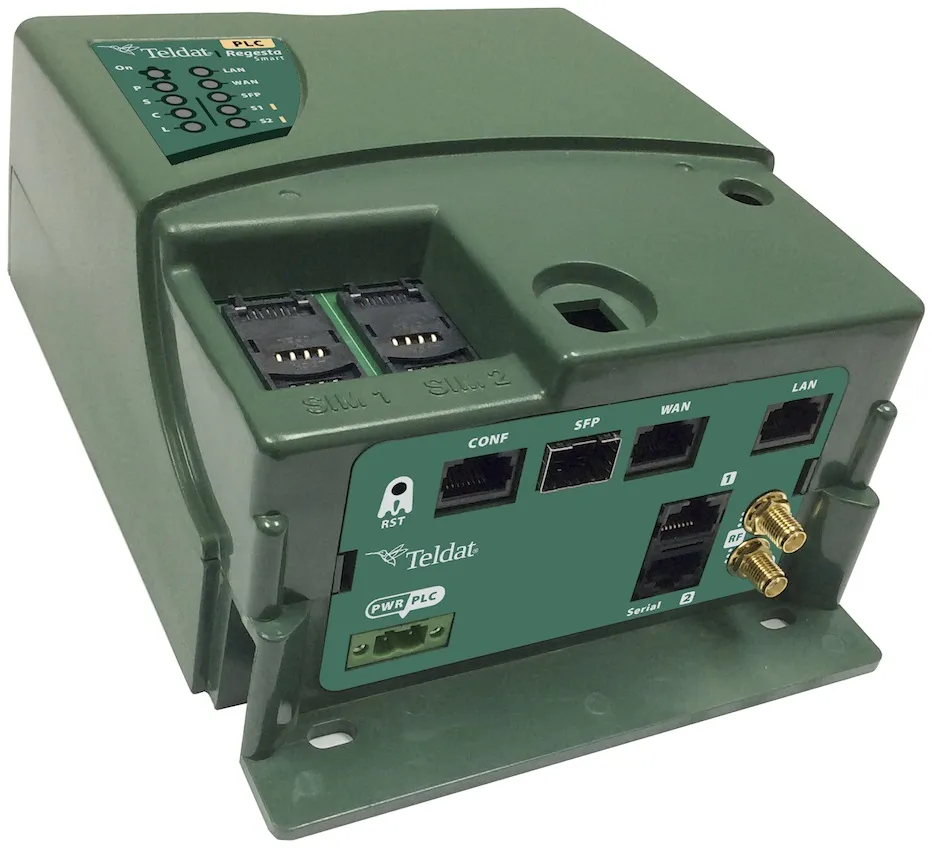

Regesta Smart PLC Communications Gateway

PLC gateway for efficient, cost-effective telemetry deployments

Productos Destacados

Multiple WAN (2G/3G/LTE, Ethernet, SFP)
PLC interface (Base node up to 2000 smart meters)
Extended temperature range (-20 to 70 °C)
Complies with electrical safety regulations & EMC
DMVPNs, VLANs and QoS for critical services
Dual-SIM redundancy
Compatible with Teldat SDWAN solution

Introducción

The Regesta Smart PLC router family brings today's most advanced corporate IP network protocols to the world of smart grids and telemetry. Specially designed to interconnect IP-based networks with PLC technology. It is ideal for the deployment of centralized smart meter communications. It takes full advantage of Teldat's advanced internetworking software (CIT) to provide the latest in communications security with encryption, authentication management and access control. The combination of advanced networking protocols and management tools makes it ideal for large-scale deployments.

Ventajas Competitivas

Reliable communications and hardware

Multiple access technologies (1 LTE, Ethernet, SFP) employed with real-time backup mechanisms, SNMP trap notifications and alerts.

Rugged hardware design

Adaptable hardware design for unattended installations, with extended temperature range (-25 to 70 °C) and electrical and electromagnetic immunity.

PLC communications support

Enables direct communication with PLC-based smart meters. Delivers PLC base node and advanced networking communications in a single device.

Corporate networking software

The latest IP network technology for smart grid communications bringing security, quality and ease of use to large-scale multiservice deployments.

Descripción

The Regesta Smart PLC are industrial-grade routers that provide secure and reliable IP broadband connectivity to SCADA telemetry and telecontrol networks in smart grid deployment. By configuring the built-in PLC communications interface as base node, you can communicate with smart meters without having to install any additional equipment like PLC concentrators.


The router guarantees optimal and maximum security of communications between multiple IP services. In addition, by using 2G/3G/LTE and Ethernet interfaces concurrently, the router provides maximun reliability of communications, which is guaranteed thanks to the full support of the management, monitoring and backup functionalities. The Regesta Smart PLC family incorporates state-of-the-art security technologies in communications with the most complete collection of VPN protocols and firewall techniques.




borrar

The Regesta Smart PLC router family brings today's most advanced corporate IP network protocols to the world of smart grids and telemetry. Specially designed to interconnect IP-based networks with PLC technology, it is ideal for the deployment of intelligent centralized telemetry solutions that require reliable communications with PLC smart meters.


It takes full advantage of Teldat's advanced internetworking software (CIT) to provide state-of-the-art communications security with encryption, authentication management and access control for protection against instrusion attacks. Combined with Teldat or third-party SNMP-based management tools, it is ideal for large-scale deployments, where for example, the Zero Touch Provisioning feature enables deployments without the intervention of dedicated IT personnel.

Características Clave

Up to 2 10/100/1000 GE ports with VLAN, 802.1X, duplex

Up to 6 10/100/1000 BaseT auto detect ports (full/half-duplex automatic negotiation). MDI / MDI-X crossover detection, Ethernet V2 / IEEE 802.3 LLC (802.2), ARP, IEEE 802.1Q (VLAN), IEEE 802.1X

2G/3G/4G (dual-SIM backup)

Embedded 2G/3G/4G interface with dual SIM card tray for automatic backups. Advanced Teldat system for proactive monitoring and automatic recovery from WWAN incidents.

Extended temperature range (-20 to 70 °C)

The Regesta Smart PLC includes a housing design for optimal heat dissipation and, wall mount and DIN rail mount options, guaranteeing operation between -20 and 70 °C with up to 93 % humidity.

Serial port for SCADA protocols (RS-232 and RS-485)

It is also able to incorporate serial interfaces with SCADA protocols, thus providing the versatility to connect to industrial meters, RTUs and other control devices.

IEC-101 to IEC-104 Serial-IP and Gateway encapsulation

Data from the serial port can be transparently encapsulated with IP. The "IEC-101 to IEC-104 gateway" function also allows IEC-101 RTUs to be maintained and central management software to migrate to IEC-104.

PRIME PLC interface (up to 2000 smart meters)

PRIME PLC interface with base and service node operation. It supports up to 2000 PLC smart meters, with topology discovery and firmware updates. Compatible with both 1.3 and 1.4 versions of the protocol.

Electrical environment safety certificates

Safety certificates for equipment in electrical environments: EMC, isolation, immunity, electrical, climatic and mechanical.

Security 802.1X, ACLs, firewall and DMVPNs (IPSec)

The Regesta Smart PLC includes state-of-the-art security: ACLs, firewall, 802.1X, IPSEC with hardware encryption, DMVPNs, etc. This allows for safe and scalable deployment in easy to manage smart grid networks.

Advanced services (routing, management, QoS)

The Regesta Smart PLC includes a software stack with the advanced functions required by advanced IP networks, such as QoS, policy routing, DMVPNs, VLANs, and VRF, providing maximum versatility for shared services.

Console port for out-of-band management

The console port facilitates troubleshooting and installation at remote points.

¿Quieres saber más?

Descargue la ficha técnica del producto en formato PDF. Acceda siempre a las características del producto, esté o no en línea. Toda la información almacenada en un formato de 4 páginas de fácil lectura.
Teldat Smart Grid

Communications & Security for Smart Electricity Networks
