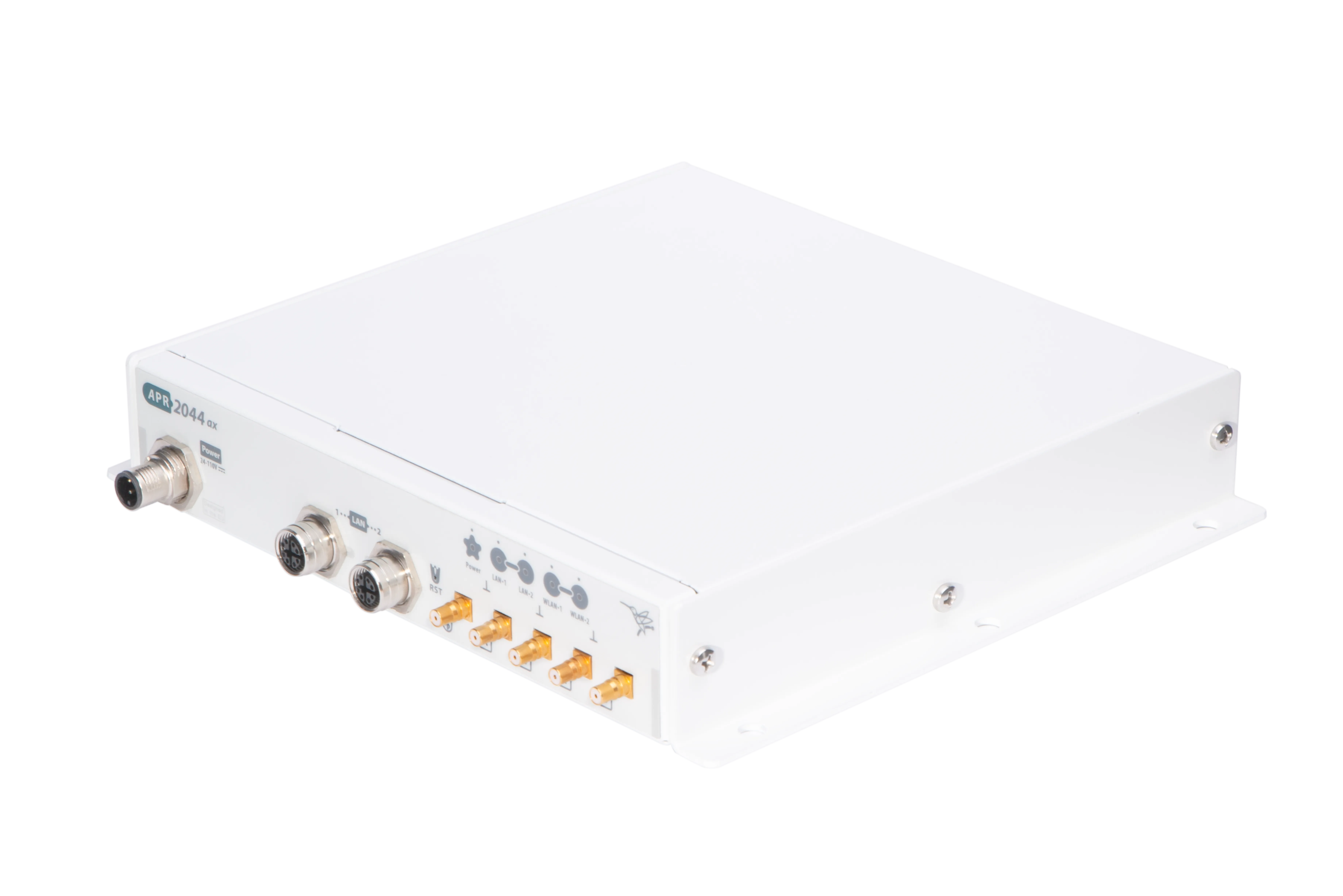

Teldat APR2044ax

Railway Access Point for WiFi services on all trains


  • Wi-Fi 6 Multi-User-MIMO 4x4 for up- and down link
  • 2,4 Gbit/s @ 5GHz and 1,1 Gbit/s* @ 2,4 GHz
  • 802.11ax technology for 2,4 and 5 GHz band
  • Compliant with Railway Regulations
  • Integrated Bluetooth for IoT applications
  • 8 antennas for optimized coverage and performance






Datasheets

The APR2044ax is Teldat’s new WiFi Access Point for
railway applications. It features two state of the art WiFi 6
modules that can provide connectivity to a high number of
passengers. It’s especially designed to meet the more
demanding railway regulations (such as EN 50155). The
APR2044ax seamless integrates with HotSpot and
WebFilter applications, creating a full solution for on-train
Internet connectivity. With two 2.5GbE ports It has the
ability to be mounted on a daisy chain configuration which
reduces the need of additional switches.

  • State of Art Wi-Fi Technology
  • Dual-Radio 4x4 MU-MIMO 802.11ax Wi-Fi 6 with high level security WPA3

  • Access Point for railway environments
  • Offers professional connectivity in railway environments on different bands

  • Ruggedized HW and Fanless architecture
  • Designed to withstand vibrations and extreme temp (-25 to 70°C). Certified according to railway standards (EN 50155, EN 50121-3-2, EN 45545-2, EN 301 908-1)

  • Simple, efficient administration
  • Web configuration (http/https), CAPWAP support from WLAN Controller in Teldat router, Teldat's Cloud base management

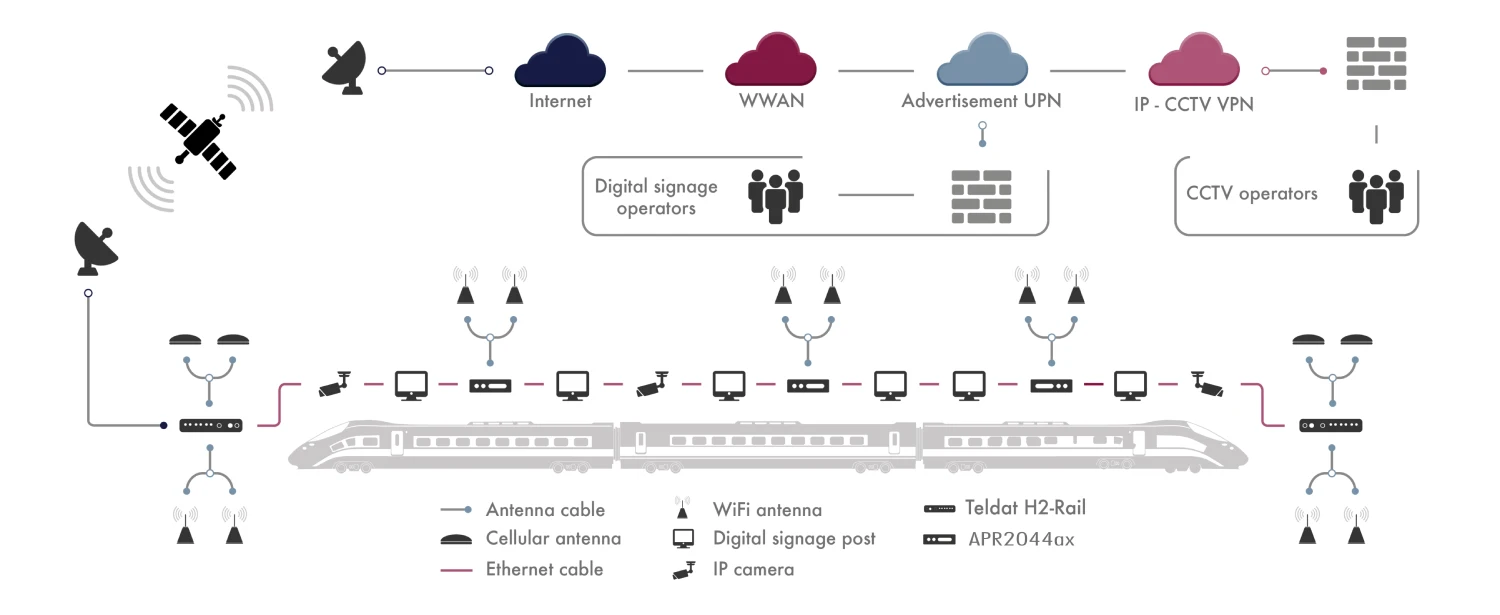

    Figure 1: Connected Train: New Railway Transport Paradigm

  • Use Cases
  • Wi-Fi LAN connectivity for high density railway environments and critical scenarious dependant on latency or high capacity

  • Security
  • Most updated encrypted and secured with WPA3-Personel/Enterprise, Rogue APs detection, 802.1x

  • Quality of Service
  • Traffic priorization by means of cathegories based on 802.11e/WMM

  • Very easy configuration
    • Centralized mode: Zero Touch Provisioning from Cloud Net Manager
    • Local mode: WLAN Controller detects and configures the new Access Point connected to the LAN
    • Manual Mode: Simple GUI

  • Optimized WAN
  • 802.1k, 802.1v, 802.1r together provide with a fast and transparent roaming to the user

  • HARDWARE TECHNICAL FEATURES

    • Interfaces and connectors
    • 2 x 100/1000/2500 Mbps Ethernet twisted pair, autosensing, auto MDI/MDI-X
    • 1 x Radio module IEEE 802.11b/g/n/ax MIMO 4x4
    • 1 x Radio module IEEE 802.11ax/ac/n/a MU-MIMO 4x4
    • Internal Power Supply
    • 24-110 VDC M12 Connector / PoE
    • Environmental specifications and consumption
    • Temperature operating: 0°C to 45°C; storage: -25°C to 70°C
    • Relative humidity: up to 95%
    • Max Consumption: T.B.D
    • Antennas
    • 2 x 2 female QMA external antennas connectors by radio module WLAN
    • 1 female QMA antenna connector by Bluetooth
    • Dimensions and casting
    • Approx. 216 mm x 216 mm x 51 mm (width x depth x height)
    • Status, Activity for WLAN1, WLAN2 and Ethernet, LEDs defeatable

    SOFTWARE TECHNICAL FEATURES

    • Wi-Fi interface
    • Airtime Fairness, Client Band Select, Client Management, Data rate trimming
    • Client Management 802.11k/v, Low SNR threshold management
    • Seamless roaming with IAPP, Fast BSS Transition 802.11r
    • WLAN Security Modes
    • WPA3-SAE; WPA2/3-PSK; WPA2-PSK; WPA1/2-PSK; WPA-PSK; WPA3-Enterprise
    • WPA2/3-Enterprise; WPA2-Enterprise; WPA1/2-Enterprise; WPAEnterprise
    • Open, OWE; OWE-Transition
    • Management/administration
    • Graphical user interface
    • Managed by a local WLAN Controller, works as WTP
    • Supported Cloud Management Systems
    • Energy Management
    • MIMO 1x1 shift down
    • 802.3az support
    • The LEDs has three operation mode: Status, Flashing, Off
    • IEEE802.11i Authentication and encryption
    • 802.1x/EAP-MD5, 802.1x/EAP-TLS, 802.1x/EAP-TTLS,
    • 802.1x/EAP-PEAP, key management
    • Detection mechanisms
    • MAC address filter for WLAN clients (white list)
    • Rogue AP, Neighbor AP
    • Power optimization
    • TWT
    • VLANs
    • Network segments on layer2 is possible
    • For each SSID one VLAN ID is available
    • Static VLAN configuration according IEEE 802.1q

    ADDITIONAL TECHNICAL FEATURES

    • Certifications
    • Directive 2014/53/EU, 2011/65/EU, Regulation (EC)
    • EN 50155:2017; EN 300 328; EN 301489-1; EN 301489-17; EN 301893;
    • EN 62368-1: 2014; EN 50121-3-2; EN45545-2:2013; EN IEC 63000; EN 62311:2008
    • Open Source information at www.teldat.com
